METRIC OEM SERIES TRD-J Discontinued INCREMENTAL SHAFT ENCODER * TRD-N Intercjamgeable
Specification Drawings Ordering Information Optional Parts[PDF] Detailed Information[PDF]





Linedriver, 1024 P/R
S.R.P.
US $265.00

FEATURES
  • 2.0" (50mm) O.D.m Medium-duty designed, NEMA 12/IP54
  • .315"(8mm) Solid Shaft, Standard Shaft Protection Scraper
  • Up to 1024 P/R
  • Strong in vibration and shock using all Metal disks.
  • 5-30Vdc TTL and 5Vdc Line Driver Output.
  • Competitive Low Prices!

*Since Oct.1, 2022, Koyo has been changed the Brand to JTEKT.
Now, JTEKT Electronics Corp.

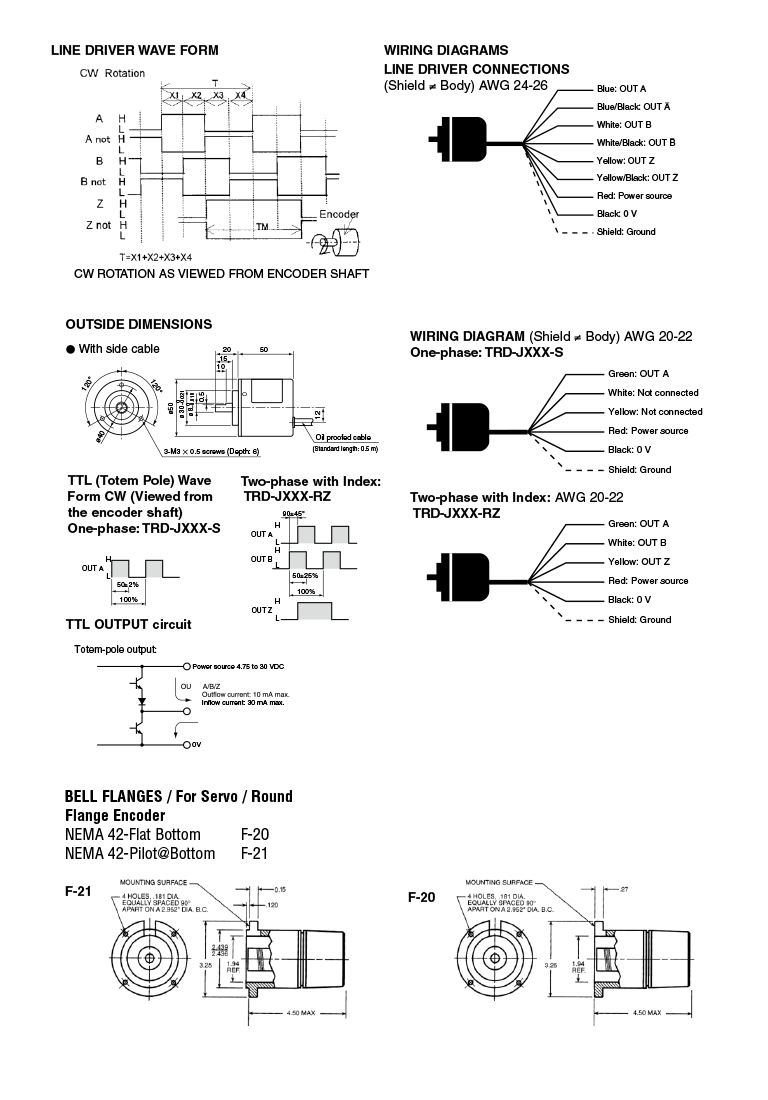

Drawings
