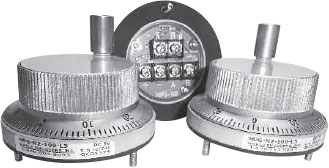

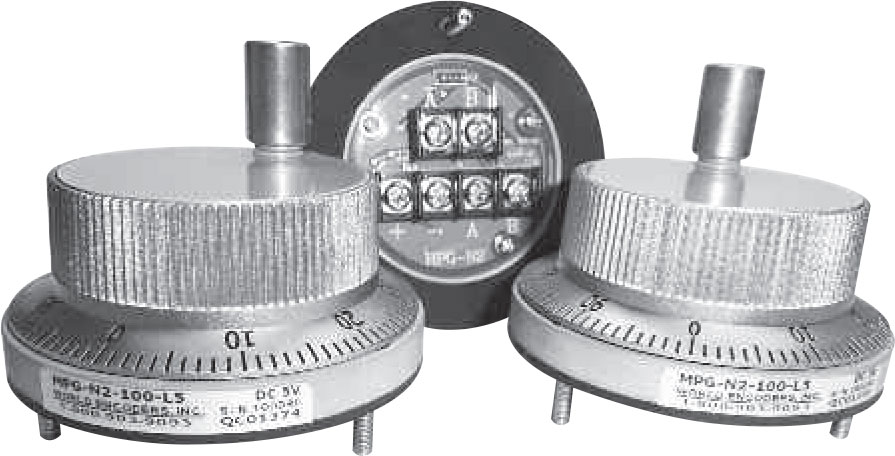

Series MPG-N2 SIZE 20 (60mm Dial) FLAT-DESIGN HAND WHEEL
Specification Drawings Ordering Information Detailed Information[PDF]


US $280.00 (Sgl. Dial)
S.R.P. List Price


brand
FEATURES
  • 2"O.D. Compact size MPG
  • Flat-design
  • Zinc metal dial & body
  • 100 ppr Std. only
  • Dual Quadrature Channels
  • Linedriver 5v or 8-26vdc and 5v TTL outputs
 Specification

Electrical
Output
Line Driver
Voltage Output-TTL (NPN)
Pulse per Revolution
100 PPR
Supply Voltage
5v ± 0.25v dc
8 -26v dc
Output Voltage (VH)
 > 2.5 v Vcc -1.0v
Output Voltage (VL)
 < 0.5 v
Current Requirements
< 60mA (No loading)
Sink Current
< 20mA
Output Capacity
 Sync.Current : 20mA, Residual Voltage : <0.5 v
Phase Difference
 Quadrature Square Wave A & B : 90°± 45° (T/4±T/8)
Rise/Fall Time
 < 2µs
Frequency Response
 0-10 kHz
Insulation Resistance
 20 MΩ At 500 v dc Megger (Circuit-Body)

Mechanical
Dial Rotating Speed
 600 r/min. Max., 200 r/min.-Normal (Continuous)
Starting Torque
 8.34 ozf-in (600 gf-cm) at 25°C
Rotational Life
 10x 6 bits turns at ≤ 200 rpm
Weight
 8 oz. (270g)

Environmental
Operating Temperature
 0° to 60° C
Humidity
 RH 35% to 90% no condensation
Storage Temperature
 0° to 80° C
Vibration
 10-50 Hz/1.5mm X, Y, Z - 2 hrs. each
Shock
 50 G per 11 ms
Enclosure
 IP50/NEMA 12
