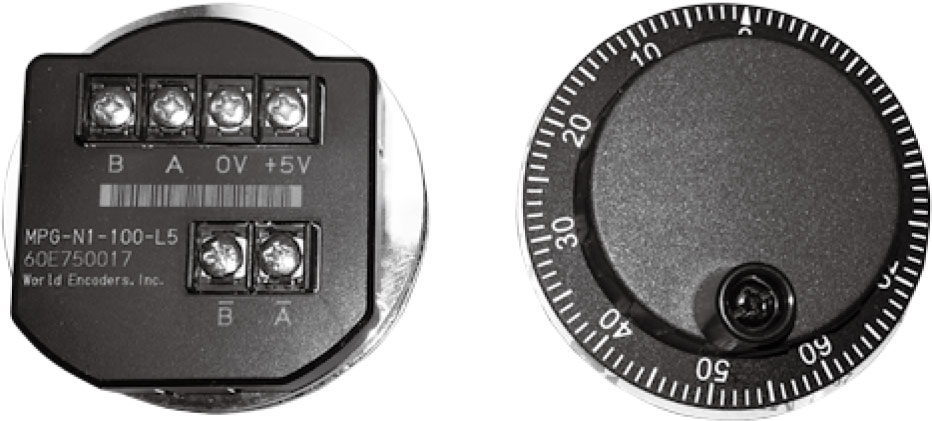

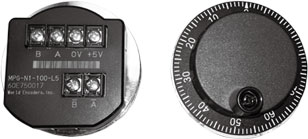

Series MPG-N1 SIZE 20 (60mm Dial) HAND WHEEL
Specification Drawings Ordering Information Detailed Information[PDF]

US $280.00 (Sgl. Dial)
S.R.P. List Price


brand
FEATURES
  • 2"O.D. Compact size MPG
  • Panel plate Sandwich design
  • Black Plastic dial & body with matt finish
  • 100 ppr Std., 25 ppr Option
  • Dual Quadrature Channels
  • Line driver 5v differential outputs
 Specification

Electrical
Output
 Line Driver
Pulse per Revolution
 100 PPR
Supply Voltage
 5v±0.25v
Output Voltage (VH)
 > 2.5 v
Output Voltage (VL)
 < 0.5 v
Current Requirement
< 60mA (No loading)
Sink Current
< 20mA
Output Capacity
 Sync.Current : 20mA, Residual Voltage : < 0.5 v
Phase Difference
 Quadrature Square Wave A & B : 90°± 45° (T/4±T/8)
Rise/Fall time
 < 2µs
Frequency Response
 0-10 kHz
Insulation Resistance
 20 MΩ At 500v dc Megger (Circuit-Body)

Mechanical
Dial Rotating Speed
 600 r/min.- Max., 200 r/min.-Normal (Continuous)
Starting Torque
 8.34 ozf-in (600 gf-cm) at 25°C
Rotational Life
 10x 6 bit turns at < 200 ppm
Weight
 6 oz. (200g)

Environmental
Operating Temperature
 0 to 60°C
Humidity
 RH 35% to 90% no condensation
Storage Temperature
 0 to 80°C
Vibration
 10-50 Hz/ 1.5mm X, Y, Z- 2 hrs.each
Shock
 50 G per 11 ms
Enclosure
 IP-50 / NEMA 12
