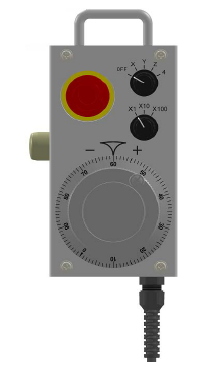

Series MPG/ Pendant Hand-held (for Brother CNC Tapping Center)
Specification



















brand

FEATURES

  • 150mA max. (90mA typ.)
  • Output Type RS-422A (Line Driver)
  • 100 Pulse / 100PPR
  • IP65(Front)
  • for Brother CNC Tapping Center
  • CNC-D00 SPEEDIO Series

 Specification

Item
Spec.
Power Source DC5V±10%
Current 150mA max. (90mA typ.)
Output Type RS-422A (Line Driver)
Terminal Resister at receiving end 100Ω
Pulse 100 Pulse / 100PPR
Response 5KHz
Starting Torque(Max.) 240 ~ 360gf.cm
Rotating Life 1 Million (200 RPM)
Water-Proof IP65(Front)
Temperature -10~+60℃ (w/o Condensation)
Shock 0.5G
Vibration 2G

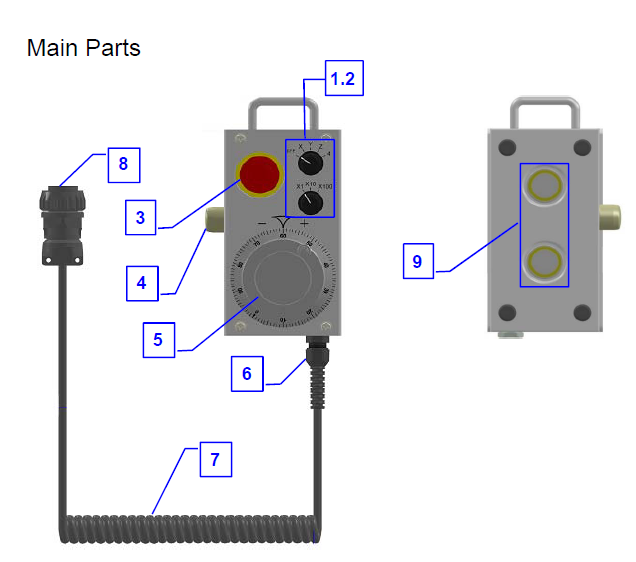

Main Parts


Item Device Module/Type Specification

1

Knob RS Knob 1. Material:ABS

2

Rotary Switch RS-06-1-00-N 1. Exclusive Code Switch
2. Step Angle:30°
3. Axis:OFF,X,Y,Z,4
4. Rate:X1,X10,X100
3 E. Stop XA1E-BV3U02R 1. Push-to-lock,Pull/Turn to reset
2. Shape:Ø29mm Mushroom
3. Contact:2NC
4 Enable HE5B-M2PY 1. Three-Position Switches ( OFF->ON->OFF)
2. Contact:2NO
5 Handwheel iHDW-AE-80 1. Pulse:100 Pulses
2. Signal:RS-422A (Line Driver)
6 Cable Gland 1546.12.1.06 1. Material:Polyamide PA 6
7 Cable CABLE 3M 1. Drain Wire + Aluminum Mylar
2. 28AWG20C
Connector JB10DX26PN2 1. Number of Positions:26 pos.
2. Rated Current:1A / pos. max.
9 Magnet Magnet(NHDW) 1. 20x3m/m
