SIZE 15 SERIES TRDA-SH INCREMENTAL HOLLOW SHAFT ENCODER (Fully Enclosed)
Specification Drawings Ordering Information Detailed Information[PDF]


All models US $210.00
S.R.P. List Price

 FEATURES
  • 1.5" O.D. Hollow Shaft Medium-duty designed
  • Fully Enclosed Body NEMA12/IP-50
  • Up to 2500 P/R with 200 kHz Frequency Response
  • 5-30Vdc Open Collector & 5Vdc Line Driver Output
  • Hub I.D. size 8mm
  • Traditional Common Mounting Bolt Circle 1.81" (46mm)
  • Micro Capsule Pre-coating Set Screws for Anti-Loose/Anti-slip

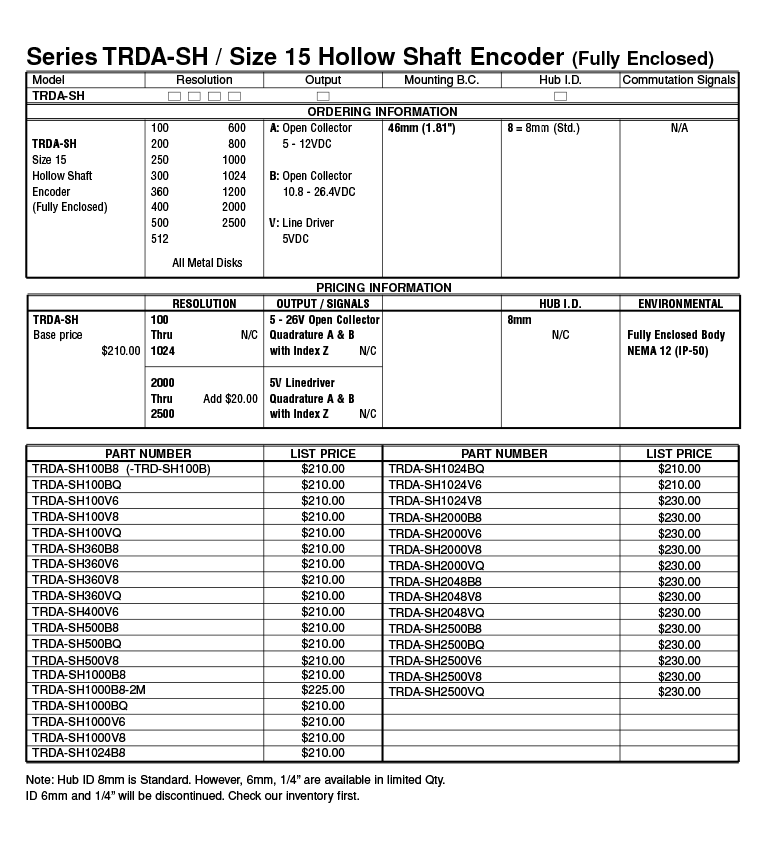

Ordering Information
