SIZE 25 SERIES TRDA-25N INCREMENTAL SHAFT ENCODER
Specification Drawings Ordering Information Optional Parts[PDF] Detailed Information[PDF]
Nicely equipped MS
Connector Model
US $450.00
(up to 1024ppr)

FEATURES
  • 2.5" O.D., heavy duty designed, NEMA4/IP65
  • 3/8" shaft, shaft seal standard (Detachable and Repairable)
  • Up to 5000 P/R Available
  • 250 KHz frequency response
  • Index gated 1/2, 1/4 channel cycle available
  • Detachable Square flange or Servo/face flange mounting
  • Super Linedriver OL7272 Compatible 5-30 Vdc available
  • Optional Parts

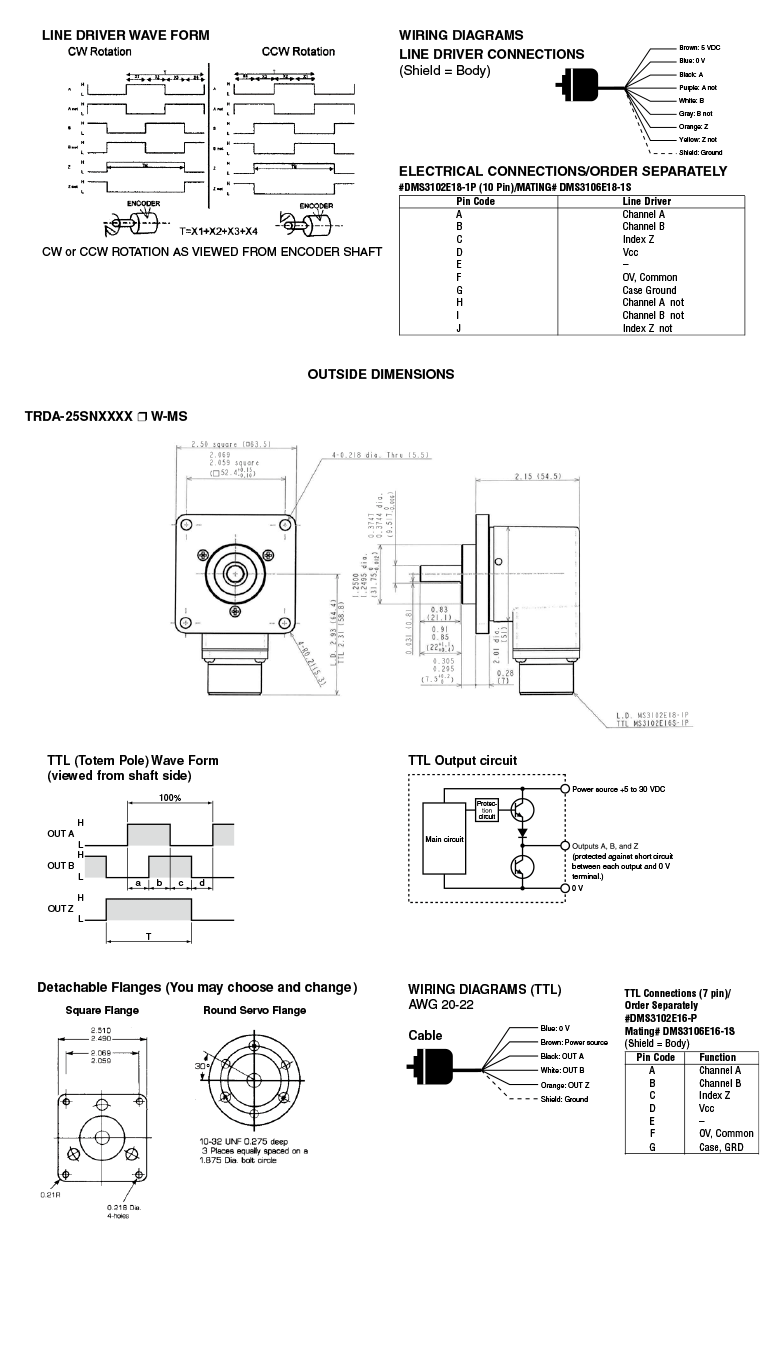

Drawings
