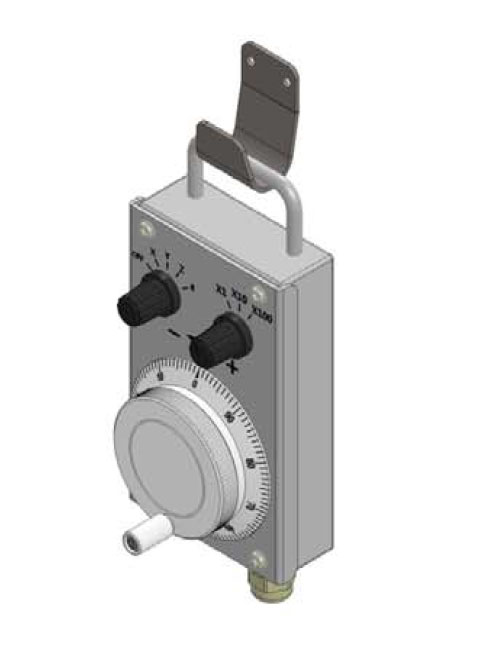

Series HPG/ Pendant Hand-held (for Brother CNC Tapping Center)
Specification Ordering Information





brand

FEATURES

  • 150mA max. (90mA typ.)
  • Output Type RS-422A (Line Driver)
  • 100 Pulse / 100PPR
  • IP65(Front)
  • for Brother CNC Tapping Center
  • CNC-A00
  • CNC-B00
  • CNC-C00

 Specification
\

Item
Spec.
Power Source DC5V±10%
Current 150mA max. (90mA typ.)
Output Type RS-422A (Line Driver)
Terminal Resister at receiving end 100Ω
Pulse 100 Pulse / 100PPR
Response 5KHz
Starting Torque(Max.) 240 ~ 360gf.cm
Rotating Life 1 Million (200 RPM)
Water-Proof IP65(Front)
Weight 241g
Temperature -10~+60℃ (w/o Condensation)
Shock 0.5G
Vibration 2G



Main Parts


Item Device Module/Type Specification

1

 Hanger ES-3206055 1. Surface Treatment：Bright
2. Material：Stain-less

2

 Rotary Switch RS-06-1-00-N 1. Exclusive Code Switch
2. Step Angle：30°
3. Axis：OFF，X，Y，Z，4
4. Rate：X1，X10，X100
3 Handwheel iHDW-AE-80 1. Pulse：100 Pulses
2. Signal：RS-422A (Line Driver)
