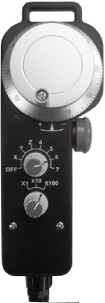

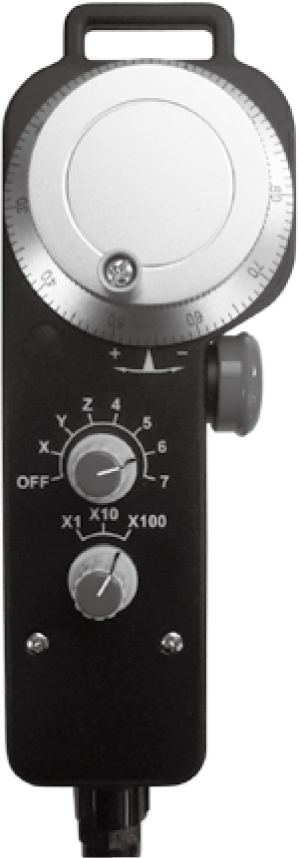

Series PHD/Pendant Hand-held with E-Stop/Enable SW for CNC Panels
Specification Drawings Ordering Information Detailed Information[PDF]


US $870.00
S.R.P.
List Price
















brand

FEATURES

  • New! 2-Contacts E-Stop SW (2B-Options are pre-wired) selection of wiring either 1A or 2B available
  • New! Durable thick-wall case & reliable thread mold with brass inserts
  • New! Durable thick multiplier & axis sector Blue SW's
  • New! Push Button SW's by IDEC (Sold Seperately)
  • 5v Linedriver and 5v TTL outputs (Point to point)
  • IP 65, NAMA 4 enclosure protection
  • Std. 16ft extended spiral cable
  • Std. magnet attached in rear
  • Circular Plastic Connector kits-Size 17 & Size 23 available
 Specification

Electrical
Outputs
Line Driver
TTL voltage output for FANUC
Pulse per Revolution
 100 PPR
Supply Voltage
5v ± 0.25v dc
5v ± 0.25v dc
Output Voltage (VH)
> 2.5 v > 4.0 v
Output Voltage (VL)
< 0.5 v < 0.5 v
Current Requirement
 < 60 mA (No loading)
Sink Current
 < 20 mA
Output Capacity Sync.Current : 20 mA, Residual Voltage : <0.5 v
Phase Difference Quadrature Square Wave A & B : 90°± 45°(T/4 ±T/8)
Rise/Fall time
 < 2µs
Frequency Response
 5 kHz
Insulation Resistance
20 MΩ At 500 v dc Megger (Circuit-Body)
Spiral Cable
 16 ft. extended, 25 pol., 22-24 AWG

Mechanical
Dial Rotating Speed 500 r/min.- Max., 200 r/min.-Normal (Continuous)
Starting Torque 5 ozf-in (360 gf-cm) at 25°C
Rotational Life 10 x 6 bits turns at < 200 rpm
Weight 3 lbs. (1.5 kg.)

Environmental
Operating Temperature 0 to 60 °C
Humidity RH 35% to 90% no condensation
Storage Temperature 0 to 80 °C
Vibration 2G
Shock 0.5G
Enclosure IP-65 / NEMA 4

Rotary Switch (PTP, Step Angle 30 Degree)
Max. Voltage 30 v dc
Current / Switch Life 50mA / >25,000 cycles

Emergency Stop Switch (Omron, 2B, A165E-S-02)
DC Load Resistance 30 vdc, 1.0 A OMRON #165E-S-02

Enable Switch (Dailywell, 1A, PAS6B1M1CES-5)
DC Load Resistance 50 vdc, 100mA Dailywell # PAS6B1M1CES-5
