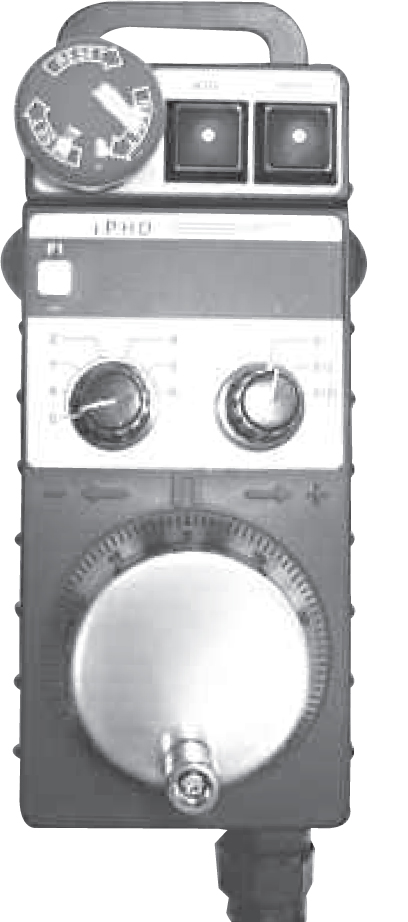

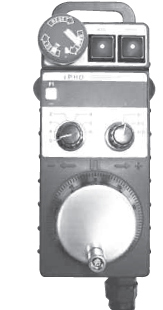

Series iPHD/Intelligent Pendant Hand-held with E-Stop (2-Contacts), 2-Enable, Jog+, Jog-, F1 SW's
Specification Drawings Ordering Information Detailed Information[PDF]


US $980.00
S.R.P.
List Price














brand

FEATURES

  • Safety Level 3, conforms to EN418
  • 2-Contacts E-Stop SW, 2-Enable SW (R & L)
  • Jog+, Jog-, F1 function SW's
  • Multiplier x1, x10, x100 and X-Y-Z-4-5 axis selector SW's
  • 5v Linedriver and 5v TTL outputs (Point to point)
  • IP65, NAMA 4 enclosure protection
  • Std. 16 ft. extended spiral cable
  • Std. Magnets attached in rear
  • Amp CPC Size 17 & Amphenol Allow Size 24 connector kit
  • Euchner HBA-072 910 interchangeable model available in stock. (Binary code 0-Z-X-Y-4-5 axis)

 Specification
\
Electrical
Outputs Line Driver
 TTL Voltage Output for FANUC
Pulse per Revolution 100 PPR
Supply Voltage 5 v±0.25 v dc 5 v±0.25 v dc
Output Voltage (VH) >2.5 v >4.0 v
Output Voltage (VL) < 0.5 v
 < 0.5 v
Current Requirement <60 mA (No Loading)
Sink Current <20 mA
Output Capacity Sync. Current: 20 mA, Residual Voltage: <0.5 v
Phase Difference Quadrature Square Wave A & B: 90°±45° (T/4±T/8)
Rise/Fall Time <2 μs
Frequency Response 0-10 kHz
Insulation Resistance 20 MΩ At 500 v dc Megger (Circuit-Body)
Spiral Cable 16 ft. extended, 25/26 pol., 22-24 AWG

Mechanical
Dial Rotating Speed 500 r/min.-Max., 200 r/min.-Normal (Continuous)
Starting Torque 8.34 ozf-in (600 gf-cm) at 25°C
Rotational Life 10x 6 bits turns at < 200 rpm
Weight 3 lbs (1.5 kg)

Environmental
Operating Temperature 0 to 60 °C
Humidity RH 35% to 90% no condensation
Storage Temperature 0 to 80 °C
Vibration 10-50 Hz/ 1.5mm X, Y, Z- 2 hrs.each
Shock 50 G per 11 ms
Enclosure IP65 / NEMA 4

Rotary Switch
Max. Voltage 30 v dc
Current / Switch Life 50 mA / >25,000 cycles

Emergency Stop Switch
DC Load Resistance 30 vdc, 1.0 A IDEC # XA1E-BV3U02R

Enable Switch
DC Load Resistance 50 vdc, 100 mA Dailywell # PAS6B1M1CES-5
NOTE: Jog+, Jog-, F1 SW's Specifications are Momentary and Normally Open.
