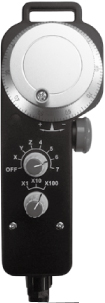

Series PHD/ Pendant Hand-held / 6 Axis / with E-Stop / with Push Button SW cap.



Push Button Asseembly Instruction

FEATURES
  • Hand-held Pulse Generator for "Manual" axis jog
  • Differential Line Driver Output or TTL Output 5v
  • X, Y Z Selector switch plus 4, 5, 6 axis
  • Retro Fit applications for Machining Center
  • "Handy," "Lightweight," "Very Thin"
  • Standard Emergency Stop Button
  • Standard 16 ft. extended spiral cable
  • Std. Magnets attached in rear.
  • Optional Push Button SW Capability (two blank holes)
  • Push
PHD-100-E-6-L-PB
Pendant Hand-held, 5 vdc Linedriver Output, E-stop, Push Button Capability - D.I.Y. Work (P.B. sold separately), 6 axis sw w/16 ft. spiral cable, 100 pulse, A, B, A not, B not ch. 5v linedriver outputs.
add_to_cart.gif view_cart.gif
PHD-100-E-6-T-PB
Pendant Hand-held for FANUC CNC Controls 5 vdc TTL Output, E-stop, Push Button Capability - D.I.Y. Work (P.B. sold separately), 6 axis sw w/16 ft. spiral cable, 100 pulse, A, B ch. 5v TTL Single-ended.
add_to_cart.gif view_cart.gif
D16LMR2
Momentary Push Button SW for PHD-100-E-6-L-PB and PHD-100-E-6-T-PB. Either N.O. or N.C.(Per choice of soldering terminal) Note: SW assembly work is responsible for user or customer. Koyo will not accept assembly work.
Price: $18.00 Availablity:

In Stock
add_to_cart.gif view_cart.gif
D16LAR2
Alternate Push Button SW for PHD-100-E-6-L-PB and PHD-100-E-6-T-PB. Either N.O. or N.C.(Per choice of soldering terminal) Note: SW assembly work is responsible for user or customer. Koyo will not accept assembly work.
Price: $18.00 Availablity:

In Stock
add_to_cart.gif view_cart.gif
H1-00125-001
Replacement (2)Selector SW's w/PCB---D.I.Y.work
Price: $96.00 Availablity:

In Stock
add_to_cart.gif view_cart.gif
EE-6C004-A01
Replacement 5m(16ft.)Spiral Cable(25 wires)-D.I.Y.work
Price: $120.00 Availablity:

In Stock
add_to_cart.gif view_cart.gif
Amp CPC Plug & Mating Size 17-28 kits
Amp CPC Plug & Mating Recpt Size 17-28 kits(Material:Thermo Plastic) 1-#206039-1CPC Plug Size17-28, 25-#66569-3 Socket soilder type,25-#66570-3 Pin-soilder type,1-#207241-1Cable Boot,1-#207387 Cable Grip, 1-#206038-1CPC Mating Recpt Size17-28 Amp brand products----by Tyco Electric-TE
Price: $40.00 Availablity:

In Stock
add_to_cart.gif view_cart.gif
HA-80001
13mm diameter Thick Rotary SW Knob for replacement. (Set screw 1.5mm Hex Socket)
Price: $9.00 Availablity:

In Stock
add_to_cart.gif view_cart.gif
