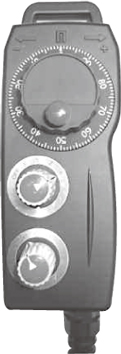

Series EHDW/Pendant Hand-held For FANUC CNC
FEATURE
  • CNC Controls of Fanuc, Mitsubishi, All others
  • Multiplier x1, x10, x100 and axis selector SW's
  • 5v TTL outputs (Point to point)
  • IP 65, NAMA 4 enclosure protection
  • Std. 10 ft. extended spiral cable
  • Amp CPC plug kit Size 17 or size 23 connector kit available as options
  • John Ford replacement - 4,5 axis SW with Enable SW available.
  • Centroid Part # 10808, 5v TTL with 5 axis, CNC10 System, CPU10 MPG's CNC Control for Mills
  • Centroid Part # 11069, 5v TTL with 3 axis, CNC11 System & Vice-versa, MPU11 MPG's CNC Control for Lathes
EHDW-BA3S-IM
For FANUC CNC Controls 5v TTL OUTPUT, 3 Axis SW, Multiplier SW, 10ft.Spiral Cable.
Price: $760.00 Availablity:

In Stock
add_to_cart.gif view_cart.gif
EHDW-BA5S-IM
For FANUC CNC Controls 5v TTL output, 5 Axis SW, Multiplier SW, 10ft.Spiral Cable
Price: $760.00 Availablity:

In Stock
add_to_cart.gif view_cart.gif
EHDW-BE5S-IM
PHD, 5V LINE DRIVER OUTPUT, 5 AXIS LEAD-TIME: IN STOCK
Price: $830.00 Availablity:

In Stock
add_to_cart.gif view_cart.gif
EHDW-CA4S-IM
For FANUC CNC Controls 5v TTL output, 4 Axis SW, Enable SW, Multiplier SW 10ft. Spiral Cable
Price: $830.00 Availablity:

In Stock
add_to_cart.gif view_cart.gif
EHDW-CA5S-IM
For FANUC CNC Controls 5v TTL output, 5 Axis SW, Enable SW, Multiplier SW 10ft. Spiral Cable
Price: $830.00 Availablity:

In Stock
add_to_cart.gif view_cart.gif
EHDW-CD5S-IM
MITSUBISHI CNC CONTROL-5 AXIS MILLS, 25 PPR, 12v TTL Output, 5 AXIS SW, MULTIPLIER & ENABLE SW'S 10 FT.SPIRAL CABLE, MAGNET IN REAR.
Price: $830.00 Availablity:

In Stock
add_to_cart.gif view_cart.gif
EHDW-CE3L-IM
Series EHDW, Pendant Hand-held, 5V LINE DRIVER OUTPUTS, 3 AXIS, 16 FT. SPRIAL CABLE, MAGNETS IN REAR
Price: $960.00 Availablity:

In Stock
add_to_cart.gif view_cart.gif
Amp CPC Size 17 connector kit
Amp CPC Size 17 connector kit(1.3"dia, 28 pos.) 1-#206039-1plug, 28-#66570-3 pin, 28-#66569-3 socket #18-28 AWG Gold Solder, 1-#206038-1 mating recept 1-#207241-1 cable boot, 1-#207387 cable grip
Price: $90.00 Availablity:

In Stock
add_to_cart.gif view_cart.gif
Amp CPC Size 23 connector kit
Amp CPC Size 23 connector kit(1.73"dia, 24 pos.) 1-#206037-1 plug,24-#66182-1 pin,24-#66183-1 socket #20-26 AWG Gold Solder, 1-#206038-1 mating recept. 1-#206138-8 cable clamp, 1-#CF20MA-BK strain relief
Price: $190.00 Availablity:

In Stock
add_to_cart.gif view_cart.gif
EE-6C004-A01
Replacement 5m(16ft.)Spiral Cable(25 wires)-D.I.Y.work
Price: $280.00 Availablity:

In Stock
add_to_cart.gif view_cart.gif
HA-80002
Blue/Gray-Plastic Selector SW Knob-19 mm(3/4") dia with Bottom ferrule for Replacement
Price: $10.00 Availablity:

In Stock
add_to_cart.gif view_cart.gif
iHDW-BIA5L-IM-C20(D25)
iHDW Series Pendant Hand-held, Basic Body, Push Button 1, E-STOP, 5vdc TTL, 100 PPR, 5 AXIS, 5 M Spiral cable. Circular connector plug on the end of cable.
Price: $980.00 Availablity:

In Stock
add_to_cart.gif view_cart.gif
MPG-RED-KNOB for PHD-100-B-S & EHDW
MPG-Red Knob for PHD-100-B-S & EHDW Consists Red Knob, Cap, Screw, Sleeve for Screw
Price: $15.00 Availablity:

In Stock
add_to_cart.gif view_cart.gif
EHDW-CG2S-IM
Pendant Hand-held, 100 ppr, 2 Axis selector SW, Multiplier SW, 24v, R2.0K output, 3 Meter Spiral Cable, Magnets in rear.
Price: $980.00 Availablity:

Out of Stock
add_to_cart.gif view_cart.gif
EHDW-CE6L-IM
100 PULSE, 5V LINE DRIVER OUTPUT, 6 AXIS SW, MULTIPLIER & ENABLE SW. 16FT SPIRAL CABLE, MAGNETS IN REAR. LEAD-TIME: 2-3 WEEKS ARO
Price: $890.00 Availablity:

In Stock
add_to_cart.gif view_cart.gif
EHDW-BE6S-IM
Fanuc CNC Control -6 axis for Mills, Lathe, MC. 100 PULSE, 5V dc, TTL output. 6 axis-Rotary SW Multiplier SW, 10FT. Spiral cable. Magnets in rear.
Price: $830.00 Availablity:

In Stock
add_to_cart.gif view_cart.gif
Cable Assembly # 18C-C12 for HPG-B-100-L-CL on Brother CNC Tapping Center
Spiral Cable 3 meter extended.(10ft.) , with Miniature Plugs to the MPG, PCB's, ARGO Polyamide Synthetic Cable Gland Strain Relief-M12 x 1.5 with 12 mm long thread length #1546.12.1.06, Nanaboshi Plug Connector# NRW-2012-PM10. Direct Replacement of Brother CNC Tapping Machine #HPG-B-100-L-CL (2016-2022) by World Encoders, Inc. **In previous version of 2006-2015 of #HPG-B-100-L-CL it is not interchangeable 2- miniature plugs to PCB. *Please re-use the existing plug, then cut wire few inches away from plug. Also, new 2-miniature plugs are not necessary so, cut plug near plug. Then, each jumping wires connect using wire connector. Nanaboshi Plug is interchangeable.**
Price: $490.00 Availablity:

In Stock
add_to_cart.gif view_cart.gif
EHDW-BABS-I
Series EHDW, Pendant Hand-held, For Sharp Machine, 4 Axis-Binary Code Wiring. Fanuc CNC-5v TTL OUTPUT.
Price: $980.00 Availablity:

In Stock
add_to_cart.gif view_cart.gif
EHDW-CA4L-IM
Series EHDW, Pendant-hand-held, Enable SW, Fanuc 5v TTL-Outputs, 4 AXIS, 16 FT SPIRAL CABLE, REAR MAGNETS.
Price: $980.00 Availablity:

In Stock
add_to_cart.gif view_cart.gif
EHDW-CDCL-IM
Series EHDW Pendant Hand-held, Enable SW, 12vTTL outputs for Mitsubishi CNC, Binary Code, 5 meter long cable.
Price: $980.00 Availablity:

Out of Stock
add_to_cart.gif view_cart.gif
HPG-B-100-L-CL (Brother CNC Tapping Center-A,B,C00))
Pendant Hand-held (Rugged Metal Housing) for Brother CNC Tapping Center-A00,B00 &C00 equipped with Manual Pulse Generator 5v Linedriver, 100 ppr, 2-Rotary SW's -Axis, Multiplier comes with 3 meter spiral cable, Nanaboshi Pulg end. Internal PCB-Binary Code wiring.
Price: $1,280.00 Availablity:

In Stock
add_to_cart.gif view_cart.gif
EHDW-CEDL-IM
Pendant Hand-held, Series EHDW, For Mitsubishi CNC Controls, 5v LineDriver outputs, Binary code 6 Axis, 5 meter Spiral Cable, Enable Button, Push Button(Jog). Lead-time: 3 weeks ARO.
Price: $980.00 Availablity:

In Stock
add_to_cart.gif view_cart.gif
EHDW-CEDS-IM
SERIES EHDW, 5v Line driver outputs, 6 Axis, Binary Code, Mitsubishi CNC, 3 METER CABLE, LEAD-TIME: 3 WEEKS ARO
Price: $980.00 Availablity:

In Stock
add_to_cart.gif view_cart.gif
H10001060606 ESP-SP 3-meter Cable
H10001060606 ESP-SP 3-meter Cable for EHDW Series such as EHDW-BA3S-IM, BA5S, CA4S, CA5S, including internal miniature connectors, Cable Clamp, Strain Relief. Lead-time: 7 days ARO
Price: $560.00 Availablity:

In Stock
add_to_cart.gif view_cart.gif
