SIZE 15 SERIES TRDA-VA INCREMENTAL HOLLOW SHAFT ENCODER (1" Thickness)

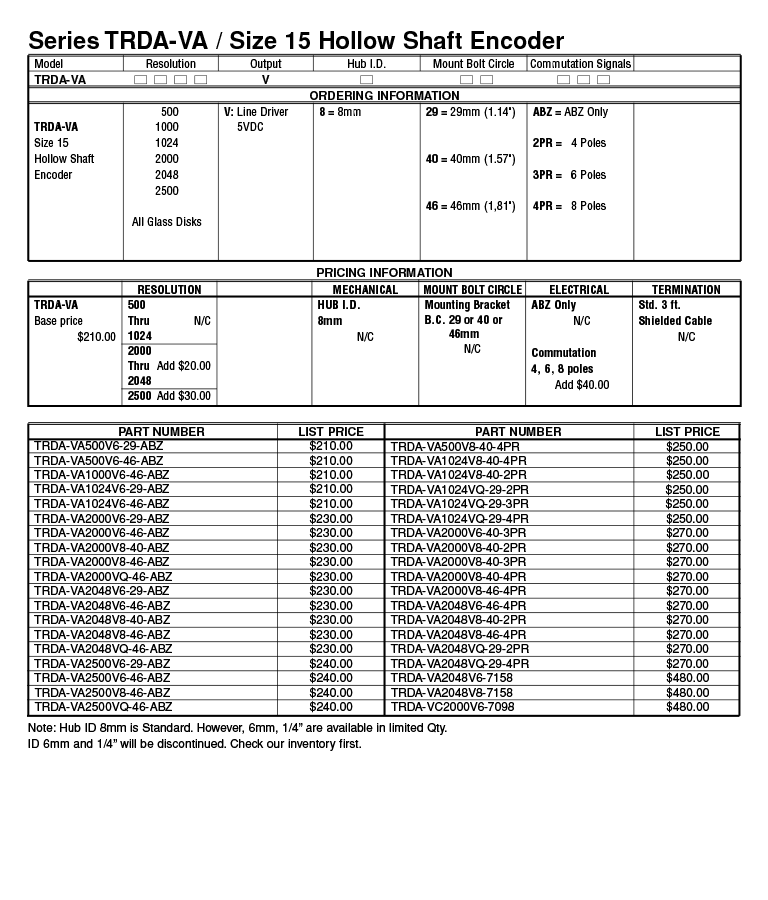

Specification Drawings Ordering Information Detailed Information[PDF]
US $170.00 (ABZ only)
S.R.P. List up to 2500ppr
with commutation signals $240.00

FEATURES

  • 1.5" O.D., Hollow Shaft designed with 1" Thickness
  • Up to 2500 P/R, 120°C Operating Temperature
  • 250 KHz Frequency Response
  • Unique Twist Lock Designed Mounting Spring
  • Micro Capsule Pre-coating Set Screws for Anti-Loose/Anti-slip
  • Hub I.D. size 1/4", 6, 8mm available
  • Applications: Brushless & Brush Motor, Stepping Motor

 Specification
